| Specifications | |

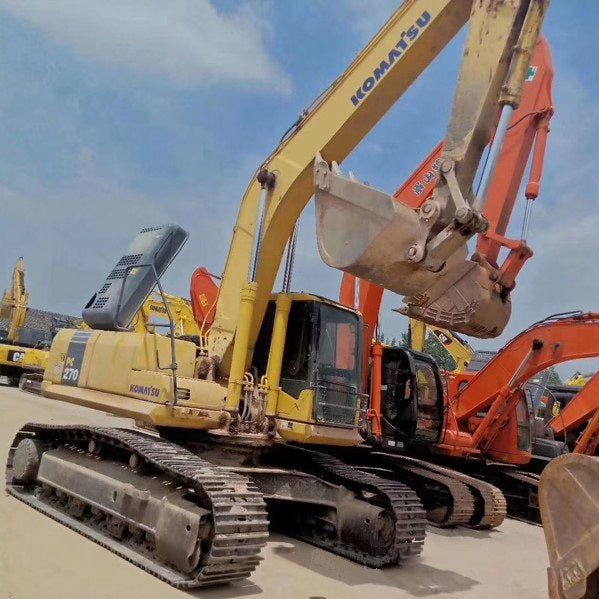

| Classification | PC270-7 |
| Operating Weight | 27,460KGS |
| Bucket Capacity (SAE HEAPED) | 1.3 m³ |
| Engine Power (SAE j1349, net) | 134/2,050 kW/rpm |
| Engine Model | Komatsu SAA6D102E-2 |
| Travel Speed | 3.0/4.1/5.5 km/h |
| Max. Digging Reach | 10,100 mm |
| Max. Digging Depth | 6,460 mm |
| Max. Digging Height | 10,000 mm |
| Overall Length | 9,790 mm |
| Overall Width | 3,390 mm |
| Overall Height | 3,210 mm |
| Classification | PC270-8 |
| Operating Weight | 28,300KGS |
| Bucket Capacity (SAE HEAPED) | 1.3-1.5 m³ |
| Engine Power (SAE j1349, net) | 137/2,050 kW/rpm |
| Engine Model | Komatsu SAA6D107E-1 |
| Travel Speed | 3.1/4.1/5.5 km/h |
| Max. Digging Reach | 10,190 mm |
| Max. Digging Depth | 6,500 mm |
| Max. Digging Height | 10,000 mm |
| Overall Length | 9,860 mm |
| Overall Width | 3,190 mm |
| Overall Height | 3,200 mm |
| Product | Brand | Model |
| Excavator | CATERPILLAR | 313D / 3150 / 325B / 325C / 325D / 329D / 320B / 320C / 320D / 330B / 330C / 336D / 345D |
| HITACHI | EX60 / EX120 / EX200 / EX210 / EX300 / ZX70 / ZX130 / ZX160 / ZX200 / ZX210 / EX230 / ZX240 / ZX350 |
|
| KOMATSU | PC60-7 / PC60-8 / PC120-6 / PC130-7 / PC200-5 / PC200-6 / PC200-7 / PC200-8 / PC210-7 / PC220-6 / PC220-7 / PC220-8 / PC240-8 / PC300-7 / PC350-7 / PC360-7 / PC400-7 / PC450-7 |
|
| VOLVO | EC180BLC / EC210BLC / EC240BLC / EC290BLC / EC360BLC / EC460BLC |
|
| KOBELCO | SK100-3 / SK200-8 / SK350-6 / SK450-6E | |
| DOOSAN | DH60-7 / DH200LC-7 / DH220LC-7 / DH225LC-9 / DH300LC-7 / DH150W-7 |
|
| HYUNDAI | 215LC-7 / 225LC-7 / 215LC-9 / 225LC-9 | |
| Wheel Loader | CATERPILLAR | 936E / 950B / 950E / 950F / 950G / 950H / 966C / 966D / 966E / 966F / 966G / 966H / 980F / 980G |
| KOMATSU | WA320 / WA360 / WA380 / WA400 / WA470 | |
| Bulldozer | CATERPILLAR | D6D / D6G / D6R / D6H / D7H / D7G / D7R / D8K / D8R / D8N / D8L / D9N / D9R |
| Road Roller | DYNAPAC | CA25D / CA251D / CA30D |
| Motor Grader | CATERPILLAR | 140H / 140G / 140K / 120H / 126 / 14G / 12H |
| Forklift | KOMATSU | 3T / 5T / 7T / 10T / 20T |
